Raspberry Pi 4 Kubernetes Cluster

Kubernetes Cluster with Simple NodeJS Kubernetes deployment.

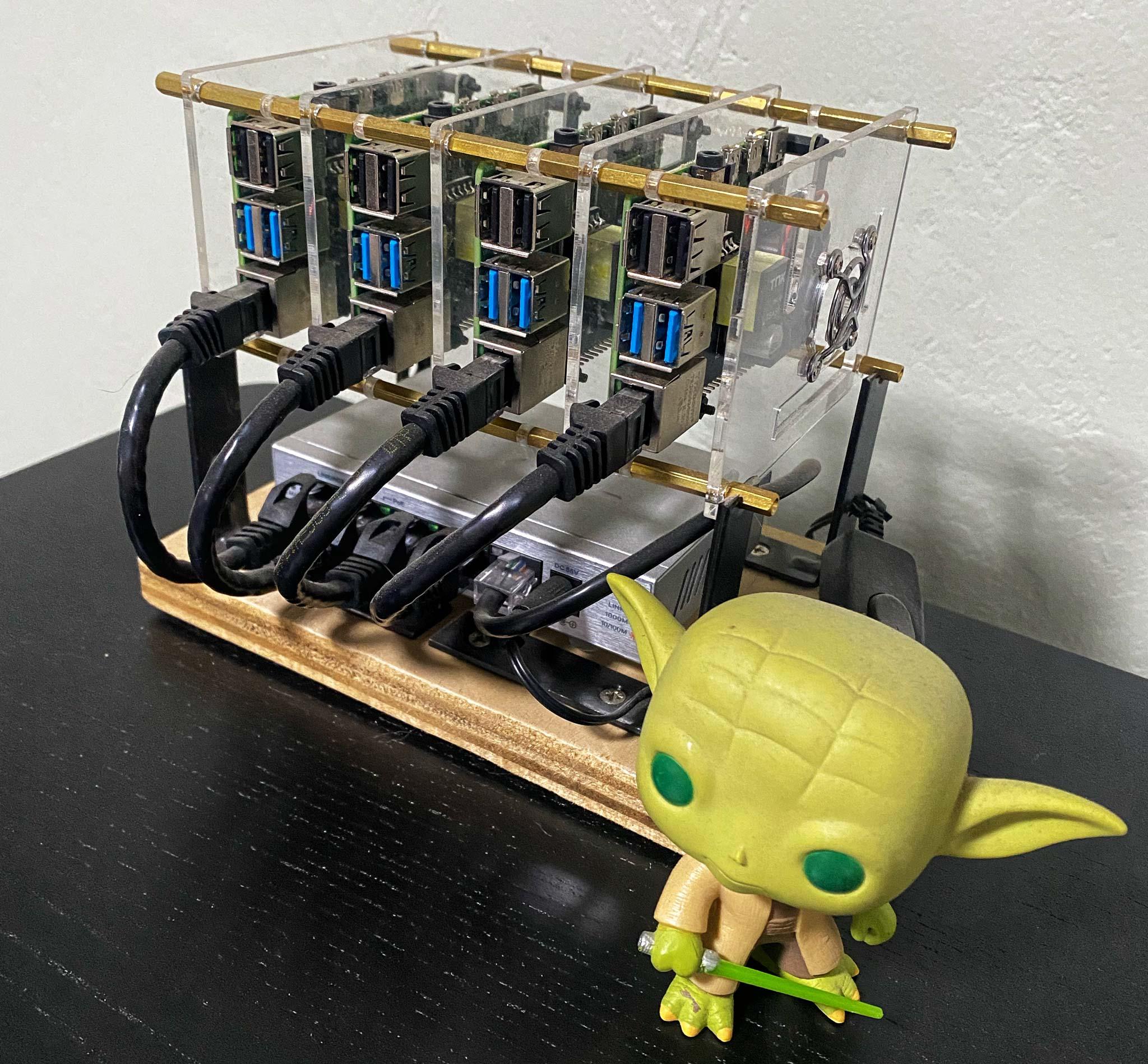

Requirements: At least 2 Raspberry Pi 4 boards, with some way to power each one. I will be using 4 in this example and a decent speed SD card per Pi.

Ubuntu Server 20.04 LTS Installation

Flash each SD card with Ubuntu Server 20.04 LTS using something like balenaEtcher..

Setup

You will prob want to give each pi a static ip to make it easier to reach. If you add static ips, you could create an ssh hosts file to make ssh even easier.


    sudo nano ~/.ssh/config



    # master
    Host k8s-master
      HostName XXX.XXX.X.XXX
      User your-user
    # worker
    Host k8s-worker-01
      HostName XXX.XXX.X.XXX
      User your-user
    # worker
    Host k8s-worker-02
      HostName XXX.XXX.X.XXX
      User your-user
    # worker
    Host k8s-worker-03
      HostName XXX.XXX.X.XXX
      User your-user


Do this on each pi.

Edit the host name ex: `k8s-master` for the master and `k8s-worker-01`, `k8s-worker-02`, `k8s-worker-03` for the workers.


    sudo nano /etc/hostname


Configure boot options.

Add cgroup_enable=cpuset cgroup_enable=memory cgroup_memory=1 swapaccount=1 to the end of the first line.


    sudo nano /boot/firmware/cmdline.txt


Install all updates and reboot.


    sudo apt update && sudo apt dist-upgrade
    sudo reboot


Create a user.


    sudo adduser your-user
    sudo usermod -aG sudo your-user


Install Docker.


    curl -sSL get.docker.com | sh
    # add your user to the docker group
    sudo usermod -aG docker your-user


Set Docker Daemon options.


    # file will most likely not exist so create it
    sudo nano /etc/docker/daemon.json


Add the following snippet.


    # /etc/docker/daemon.json
    {
      "exec-opts": ["native.cgroupdriver=systemd"],
      "log-driver": "json-file",
      "log-opts": {
        "max-size": "100m"
      },
      "storage-driver": "overlay2"
    }


Enable Routing

Find the line #net.ipv4.ip_forward=1 and uncomment it.


    sudo nano /etc/sysctl.conf
    # reboot
    sudo reboot


Check that the Docer service is running and run hello-world.


    sudo systemctl status docker
    # run hello-world
    docker run hello-world


Install Kubernetes

Add the Kubernetes Repo.


    sudo nano /etc/apt/sources.list.d/kubernetes.list
    deb http://apt.kubernetes.io/ kubernetes-xenial main


Add the GPG key.


    curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo apt-key add -


Install required Kubernetes packages.


    sudo apt update
    sudo apt install kubeadm kubectl kubelet


Initialize Kubernetes.

Run this command on the Master only. This will return some commands as well as the node join command, save this for later.


    sudo kubeadm init --pod-network-cidr=10.244.0.0/16


Set up the config directory.

If the commands returned above are different from the ones below run those instead as they may have changed.


    mkdir -p ~.kube
    sudo cp /etc/kubernetes/admin.conf ~/.kube/config
    sudo chown $(id -u):$(id -g) $HOME/.kube/config


Install the flannel network driver.


    kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml


Check pod status.


    kubectl get pods --all-namespaces


Add the worker nodes to the cluster.


    # run the join command on each worker pi
    # example command below, use the one you saved from the above steps
    kubeadm join --discovery-token abcdef.1234567890abcdef --discovery-token-ca-cert-hash sha256:1234..cdef 1.2.3.4:6443


Check node status.


    kubectl get nodes
    # more info
    kubectl get pods -o wide


The next set is to run a service.

Deployment

Creates a Simple NodeJS Server that displays an image. Deployment, with 3 replicas.


    kubectl apply -f rpi-test-node-deploy.yaml

    # Wait for the pods to be created, you can check the status with
    kubectl get pods --all-namespaces

    # Expose the pods, so they are accessible from outside the cluster via NodePort.

    # In --type attribute, we can also provide ClusterIP, ExternalName, and LoadBalancer. In case of ClusterIP, the
    application will be exposed on a port that will not be accessible from outside the cluster. Services of type
    ExternalName, map a Service to a DNS name. In the case of LoadBalancer, it exposes the Service externally using a cloud
    provider’s load balancer. NodePort and ClusterIP Services, to which the external load balancer routes, are automatically
    created.
    kubectl expose deployment rpi-test-node-deploy --type NodePort --port 3000

    # Get the NodPort, it will look something like 3000:xxxx, xxxx will be your port
    kubectl get service

    # Get the node's external ip
    kubectl get node -0 wide


Kubernetes Dashboard

Install


    kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.4.0/aio/deploy/recommended.yaml


Creating a Sample User

In this guide, we will find out how to create a new user using the Service Account mechanism of Kubernetes, grant this user admin permissions and login to Dashboard using a bearer token tied to this user.

IMPORTANT: Make sure that you know what you are doing before proceeding. Granting admin privileges to Dashboard's Service Account might be a security risk.

Creating a Service Account

We are creating Service Account with the name admin-user in namespace kubernetes-dashboard first.

dashboard-adminuser.yaml


    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: admin-user
      namespace: kubernetes-dashboard


Creating a ClustorRoleBinding

In most cases after provisioning the cluster using kops, kubeadm or any other popular tool, the ClusterRole cluster-admin already exists in the cluster. We can use it and create only a ClusterRoleBinding for our ServiceAccount. If it does not exist then you need to create this role first and grant required privileges manually.

cluster-role-binding.yaml


    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRoleBinding
    metadata:
      name: admin-user
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: ClusterRole
      name: cluster-admin
    subjects:
    - kind: ServiceAccount
      name: admin-user
      namespace: kubernetes-dashboard



    kubectl apply -f cluster-role-binding.yaml


Get a Bearer Token

Now we need to get the token that we need to use to log in with. Execute the following command:


    kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"


Access Kubernetes Dashboard from outside the Cluster

SCP config file from master /etc/kubernetes/admin.conf


    kubectl proxy --kubeconfig=admin.conf


Clean Up

Remove the admin ServiceAccount and ClusterRoleBinding.


    kubectl -n kubernetes-dashboard delete serviceaccount admin-user
    kubectl -n kubernetes-dashboard delete clusterrolebinding admin-user


Kubernetes Metrics Server

Download File:


    wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml -O metrics-server-components.yaml


Kubelet certificate needs to be signed by cluster Certificate Authority (or disable certificate validation by passing --kubelet-insecure-tls to Metrics Server)

Modify the file (Do not do this in production)

Add --kublet-insecure-tls to container args


    nano metrics-server-components.yml


Kubectl Commands

Get deployments across all namespaces.


    kubectl get deploy -A


Delete deployment.


    kubectl delete deploy deploymentname -n namespacename
